The fully intelligent wireless high/low voltage phase detector, also known as the fully intelligent wireless high voltage voice phase detector or wireless high voltage phase detector, abbreviated as phase detector or phase tester, consists of a wireless receiver, detector, telescopic insulating rod, etc. The receiver features a 3.5-inch true color LCD screen displaying phase detection results, phase, frequency, and vector diagram indicators simultaneously on the screen, along with voice prompts such as "X signal normal, Y signal normal, in phase, out of phase," providing clear and intuitive information. The phase detection distance can reach up to 160m on open ground, capable of performing fully intelligent phase detection on voltage lines ranging from 10V to 550kV. For bare conductors of 35kV and below, direct contact phase detection can be performed; for those above 35kV, non-contact phase detection is used. Non-contact phase detection involves gradually approaching the tested conductor with the detector, completing phase detection upon sensing the electric field signal without directly touching the high voltage line, thus enhancing safety.
Response within
24 hours
Free warranty
12 month
On-line training
Support

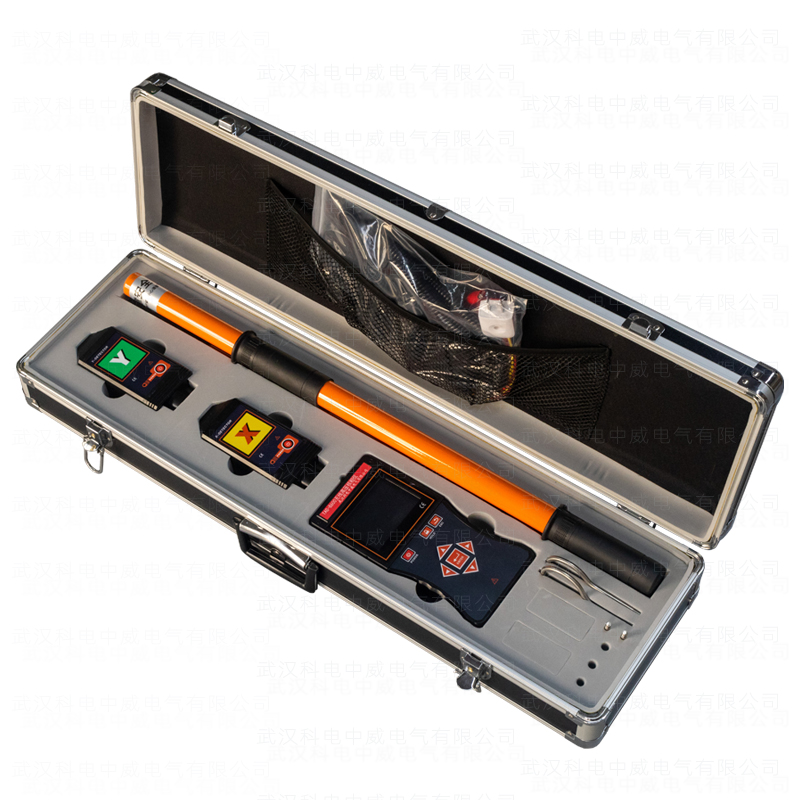

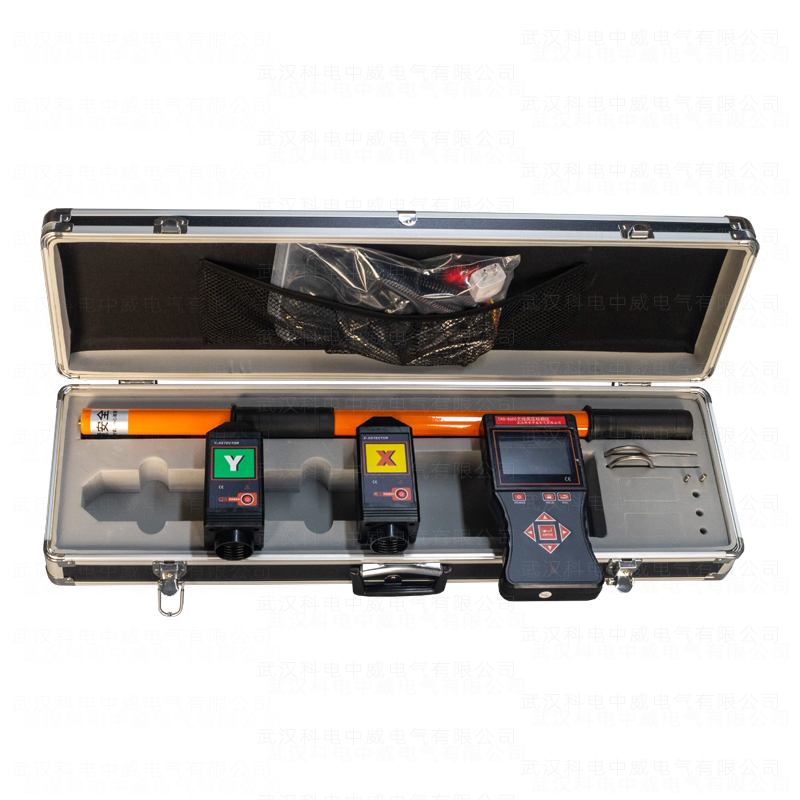

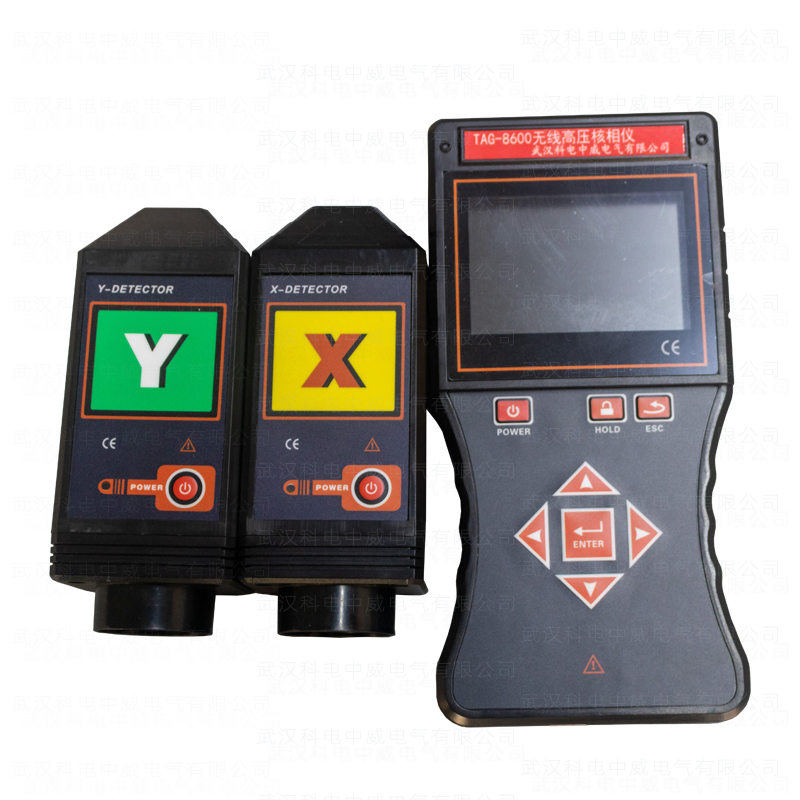

TAG-8600 Wireless High Voltage Phase Detector is applied to phase verification and phase sequence verification of high voltage power lines and substations. It adopts the latest power electronic detection technology and wireless transmission technology, ensuring safe and reliable operation, convenient use, overcoming numerous drawbacks of wired phase detectors, and complying with the quality supervision inspection standards for national electric power safety tools.
The fully intelligent wireless high/low voltage phase detector, also known as the fully intelligent wireless high voltage voice phase detector or wireless high voltage phase detector, abbreviated as phase detector or phase tester, consists of a wireless receiver, detector, telescopic insulating rod, etc. The receiver features a 3.5-inch true color LCD screen displaying phase detection results, phase, frequency, and vector diagram indicators simultaneously on the screen, along with voice prompts such as "X signal normal, Y signal normal, in phase, out of phase," providing clear and intuitive information. The phase detection distance can reach up to 160m on open ground, capable of performing fully intelligent phase detection on voltage lines ranging from 10V to 550kV. For bare conductors of 35kV and below, direct contact phase detection can be performed; for those above 35kV, non-contact phase detection is used. Non-contact phase detection involves gradually approaching the tested conductor with the detector, completing phase detection upon sensing the electric field signal without directly touching the high voltage line, thus enhancing safety.
This phase detector also functions as a high voltage detector, high voltage phase meter, and high voltage phase sequence meter, which can be used for voltage detection, phase sequence testing, transformer group judgment, etc.
Alternative Names: Fully Intelligent Wireless High/Low Voltage Phase Detector, Fully Intelligent Wireless High Voltage Voice Phase Detector, Wireless High Voltage Phase Tester, Phase Detector, Phase Tester.
| Function | High/Low voltage wireless voice phase detection, frequency, phase, phase sequence, voltage detection testing |
| Power Supply | DC 3.7V rechargeable lithium battery, USB charging interface, continuous operation for about 10 hours |
| Transmission Method | 315MHz, 433MHz wireless transmission |
| Phase Detection Distance | Maximum about 160m |
| Display Mode | 3.5-inch true color LCD screen display |
| Measurement Range | Phase detection voltage level: AC 10V～550kV |
| Phase: 0.0°～360.0° | |
| Frequency: 45Hz～75Hz | |
| Resolution | 0.1°; 0.1Hz |
| Accuracy (23℃±5℃, below 80%RH) | Phase: ≤±10° |
| Frequency: ≤±2Hz | |
| Phase Identification | In-phase: -30°～30°; Out-of-phase: 90°～150° and 210°～270° |
| Voice Function | In-phase, out-of-phase, X signal normal, Y signal normal, etc. voice functions |
| Insulating Rod Dimensions | About 3.2m long when extended; about 0.6m long when retracted (5m rod available as an option) |
| Data Storage | 9999 sets |
| Phase Detection Method | Contact phase detection: Below 35kV bare conductor, or directly contact phase detection on insulated conductors up to 110kV (with insulating rod operation) |
| Non-contact phase detection: Above 35kV bare conductor, or non-contact phase detection on lines above 110kV by gradually approaching the conductor (with insulating rod operation) | |
| Voltage Detection Indication | Detector "beep--beep--beep" sound |
| Shift Change | Automatic shift change |
| Sampling Rate | 2 times/second |
| Instrument Dimensions | Detector: Length x Width x Thickness 145mm×60mm×48mm |
| Receiver: Length x Width x Thickness 250mm×100mm×40mm | |
| Backlight Control | Adjust backlight brightness using up/down arrow keys |
| Induction Strength Control | The detector automatically controls amplification based on different electric field strengths, suitable for dense wiring areas |
| Data Hold | Press HOLD key to hold data in test mode, press HOLD key again to cancel hold |
| Exit Function | Press ESC key to exit current function interface and return to the upper directory |
| Data Review | Press ENTER to enter data review mode, use arrow keys to browse stored data |
| No Signal Indication | When no transmission signal is received by the receiver, it dynamically displays "----" symbol |
| Auto Power Off | Turns off automatically after about 15 minutes of operation to reduce battery consumption |
| Battery Voltage | When battery voltage is below 3.2V: |
| Detector: Power indicator slowly flashes, reminding to charge; | |
| Receiver: Low battery voltage symbol displayed, reminding to charge | |
| Rated Current | Detector: 35mA max; Receiver: 300mA max |
| Instrument Quality | Detector: 205g (including battery) |
| Receiver: 395g (including battery) | |
| Insulating Rod: 1.2 kg (3m rod), 1.45kg (5m rod) | |
| Total weight: 7kg (including instrument case, configuration with 5m rod and case approximately 9.8 |
