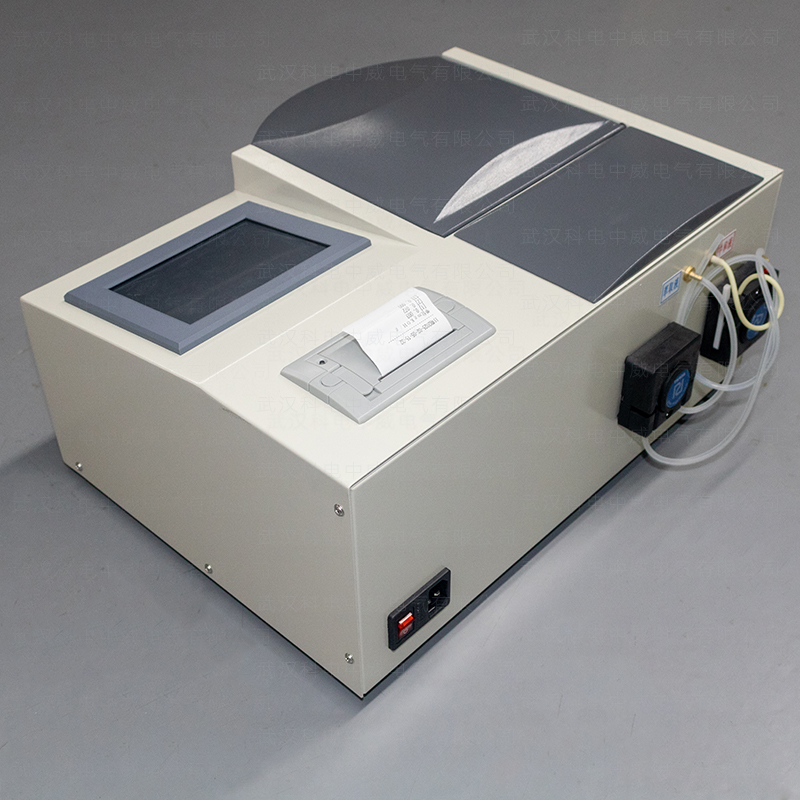

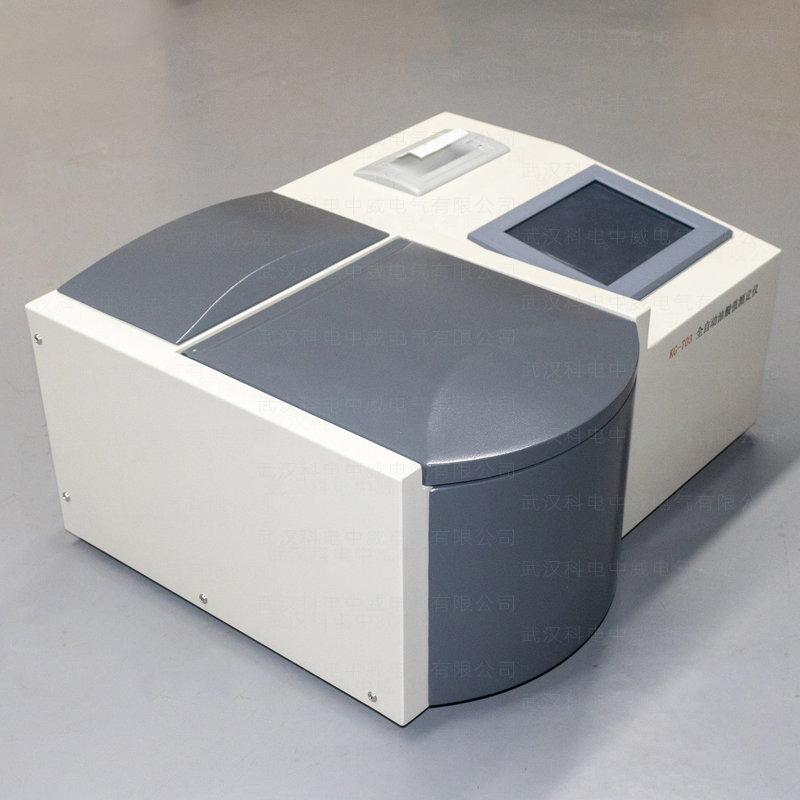

This model of oil acid value tester is a high-accuracy, fully digital industrial instrument developed by our company's entire team of scientific research and technical personnel, in accordance with relevant national standards. The instrument is easy to operate and features an aesthetically pleasing design. It employs fully automatic digital microcomputer control, based on the basic framework of chemical analysis through acid-base neutralization reactions, complemented by self-developed background blank deduction and titration endpoint logic judgment programs, ensuring both precision and accuracy in measurements.

The detection of acid values in transformer and turbine oils is a routine inspection item for power systems and industrial enterprises' oil-filled electrical equipment. This oil acid value tester has been specifically developed by our company for the determination of acid values in such oils. The instrument integrates optics, mechanics, electronics, and chemistry under the core control of a single-chip microcomputer, effectively replacing manual operations, thereby improving work efficiency and reducing the physical strain on operators while minimizing the harm of organic solvents and other chemicals to human health.

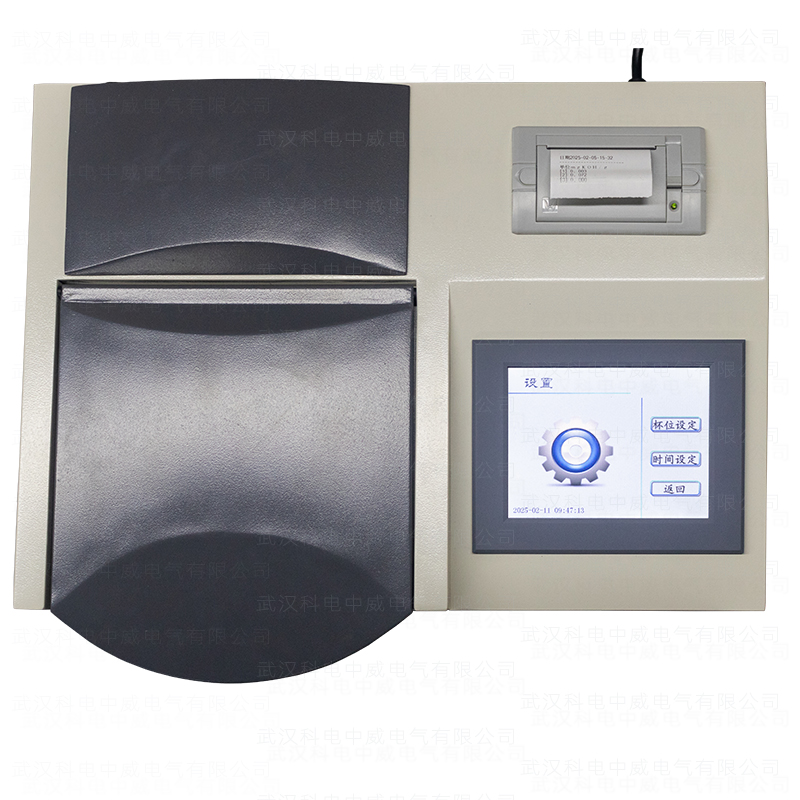

The oil acid value tester operates on the principle of neutralization, automatically completing liquid addition, stirring, titration, and endpoint determination at room temperature under microcomputer control. A touch LCD screen is used to select all working parameters, providing a user-friendly interface for simple operation. The average analysis cycle for oil samples is approximately 2 minutes. Up to 35 sets of measurement results can be displayed individually and printed, including multiple parameters related to the measurement.

Specialized reagent bottles are used to contain extraction and neutralization solutions. Reagents are stored in glass containers to ensure they are free from plastic additive contaminants. During operation, users do not need to come into contact with organic solvents, further reducing the risk of chemical exposure.

According to user needs, this automatic acid value tester can measure 1 to 3 samples separately.

1. Fully Automatic Operation
2. User-friendly Human-Machine Interface, easy to operate
3. Average oil sample analysis cycle is approximately 2 minutes
4. Capable of printing multiple parameters related to the measurement

Technical Specifications

1. Linear Range: 0.001~0.400 mgKOH/g;
2. Correlation Coefficient: 0.999~0.9998
3. Recovery Rate: 98~103%
4. Minimum Resolution: 0.001 mgKOH/g
5. Repeatability: 2~5% (RSD)
6. Measurement Accuracy:
   • For acid values between 0.001~0.100 mgKOH/g: ±0.003 mgKOH/g;
   • For acid values between 0.100~0.400 mgKOH/g: 2~5% of the indicated value;
7. Display Method: Large screen touch-type color LCD (full Chinese characters display)
8. Dimensions: (Length) 430 mm × (Width) 370 mm × (Height) 190 mm
9. Net Weight: ~9 kg

Operating Conditions

1. Ambient Temperature: 0~40°C
2. Relative Humidity: ≤85%
3. Power Supply: AC 220V ± 10%
4. Power Frequency: 50 ± 5 Hz
5. Power Consumption: <150 W
