1. Anti-Cross Interference Technology: Utilizes anti-cross interference technology for high precision and good repeatability.
2. Environmental Temperature Dynamic Compensation: Features dynamic compensation for environmental temperature to ensure accurate measurements.
3. Built-in Imported Electronic Mass Flow Meter: Equipped with an imported electronic mass flow meter to precisely control gas flow.
4. Fast and Gas-Saving: After powering on and entering measurement mode, each decomposition product determination takes less than 2 minutes.
5. Optional Pipeline Cleaning Device: Can be optionally equipped with a pipeline cleaning device that automatically cleans internal pipelines after testing, improving testing speed and accuracy.

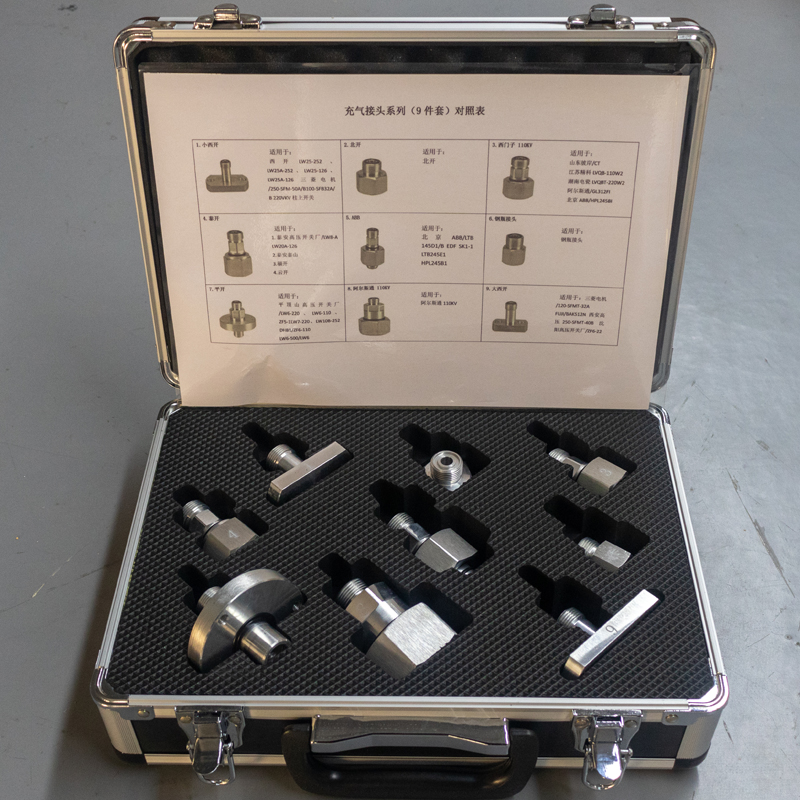

6. Self-Locking Connectors: Uses original imported self-locking connectors, ensuring safety and reliability with no gas leakage.

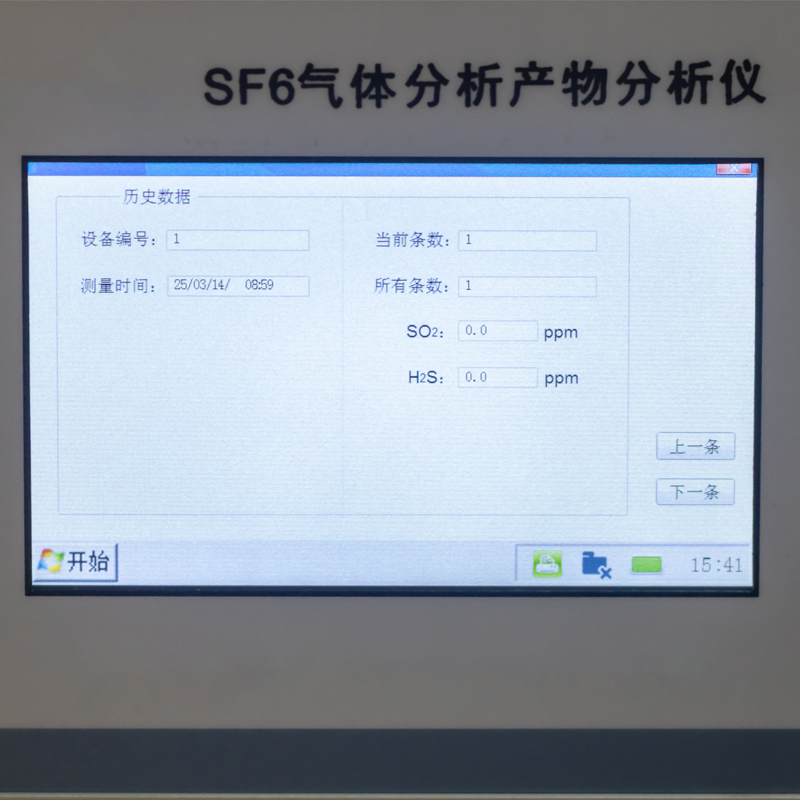

7. Graphical User Interface: Features a graphical operation interface for easier use.
8. Large-Capacity Rechargeable Lithium Battery: Equipped with a large-capacity rechargeable lithium battery, allowing continuous operation for more than 10 hours on a single charge.

H2S

• Measurement Range: 0~200 ppm
• Minimum Detectable Amount: ≤0.1 ppm
• Accuracy: ±0.5%

SO2

• Measurement Range: 0~200 ppm
• Repeatability: ≤2%
• Accuracy: ±0.5%

Environmental Conditions

• Operating Temperature: -40℃ to +60℃
• Operating Humidity: 0~100% RH

Power Supply

• Power Source: AC 100~240V, 50/60Hz, with a built-in rechargeable battery
• Battery Performance:
• Charging Time: 10 hours
• Operating Time: More than 12 hours on a single charge

Operating Temperature

• Working Temperature Range: -30℃ to +70℃

Dimensions and Weight

• Dimensions: 280×150×300 mm (L×W×H)
• Weight: 5 kg
