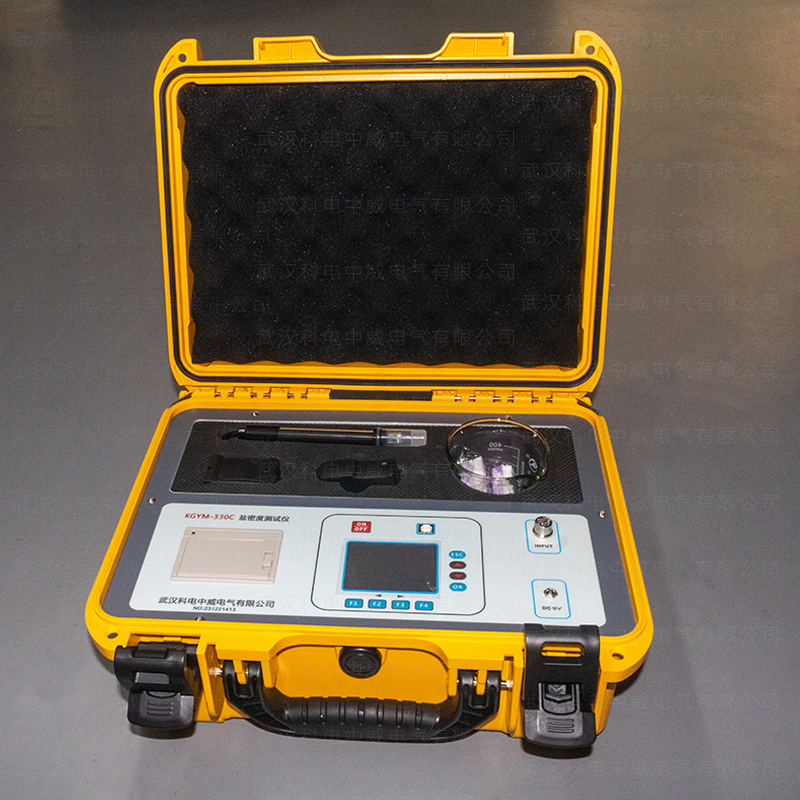

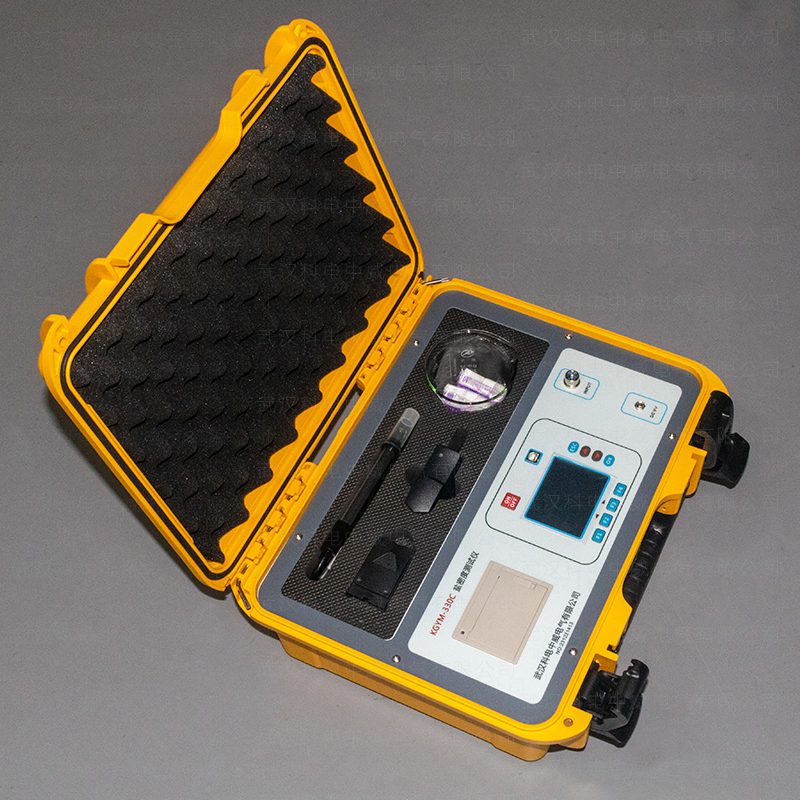

The Intelligent Conductivity Salt Density Tester, also known as the Direct-Reading Equivalent Salt Density Tester, is specifically designed for testing intelligent conductivity salt density. The system incorporates an intelligent conductivity salt density calculation formula, providing intuitive readings. Human-machine interaction is facilitated through a true color TFT LCD screen, making operations simple with all parameters and results clearly visible. The instrument is equipped with an external micro printer for convenient data storage and comparison. It offers built-in lithium battery power supply, making it suitable for field testing. This instrument adheres to the latest standards Q/GDW152—2006 "Classification of Pollution Zones and Selection of External Insulation for High Voltage Overhead Lines and Substations" and is applicable for testing the salt density of external insulation equipment in high-voltage overhead lines, power plants, substations, and other locations.

• Direct Reading: No conversion required. The salt density on the surface of the insulator is directly displayed.
• Imported Platinum Electrode: Features stable and reliable performance.
• Salt Density Measurement Range: 0.0001mg/cm² to 9.9999mg/cm² with a resolution of 0.0001.
• Simultaneous Parameter Measurement: Can measure other parameters such as solution conductivity and temperature simultaneously.
• Full Scale Auto Switching: Automatically switches across the full range, improving accuracy at low salt densities.
• Temperature Compensation: Features automatic temperature compensation, adjusting the solution's conductivity value to its equivalent at 20℃.
• System Self-Calibration: Includes an automatic calibration function upon startup, enhancing measurement accuracy.
• External Micro Printer: Equipped with a micro printer for convenient and accurate recording of results on-site.
• Power Supply: Utilizes an internal lithium battery, making it suitable for both laboratory and field use.
• Unique Human-Machine Interface: Simple and intuitive operation.
• Data Storage: Offers onboard storage and USB drive storage, capable of storing up to 99 sets of data.
• Graphical Interface: Supports both Chinese and English language switching, featuring a graphical interface that is intuitive and concise.
