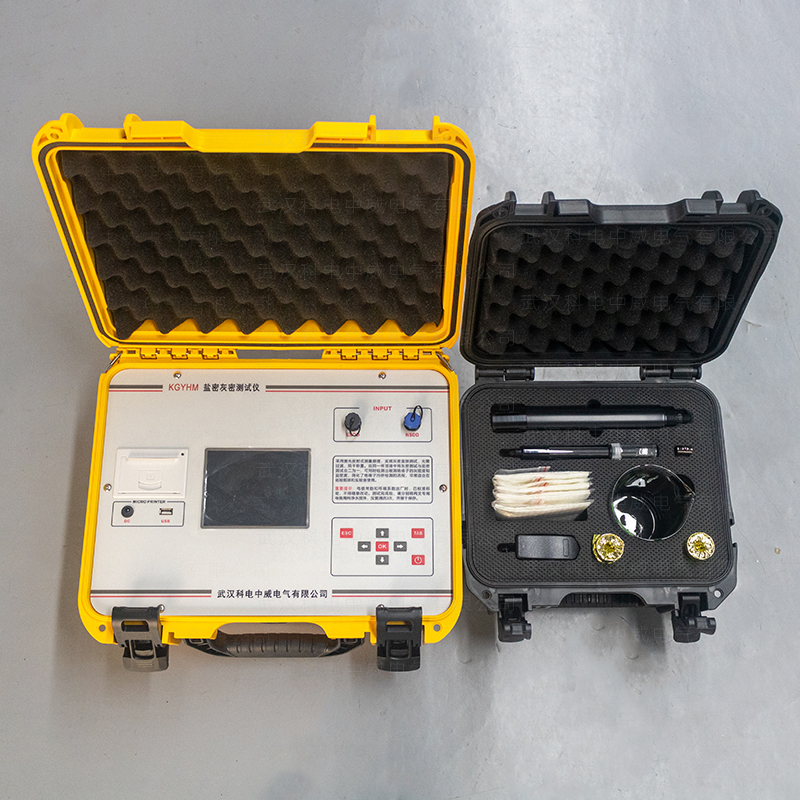

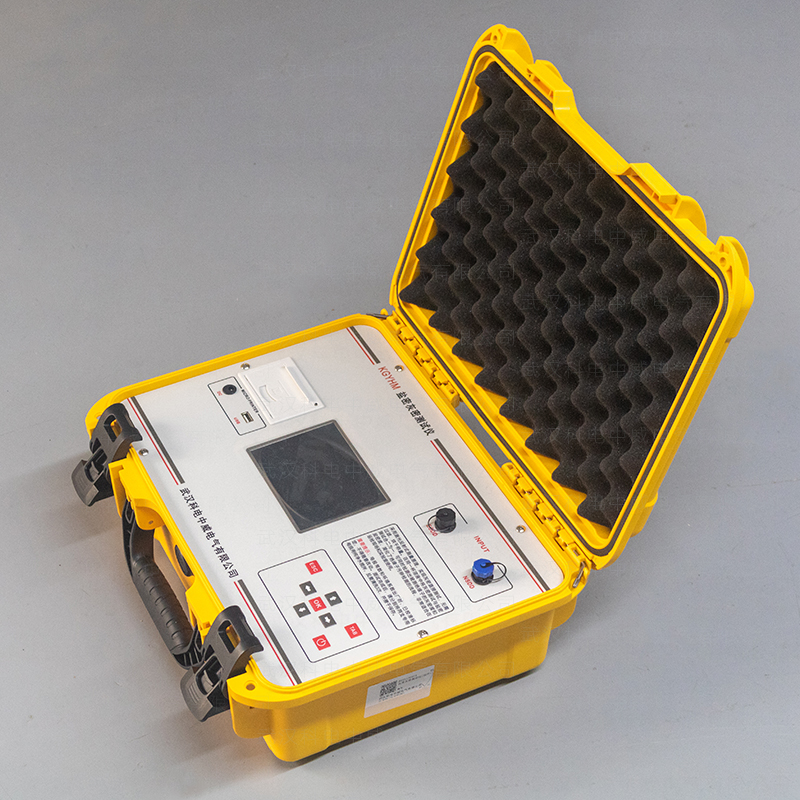

The KGYHM Laser Salt Density and Ash Density Tester adopts new detection technology that combines ash density testing with salt density testing into one device. It can simultaneously detect the ash density and salt density of the tested insulator, simplifying the process of insulator contamination detection. This makes it highly suitable for use in on-site inspections and laboratory settings.

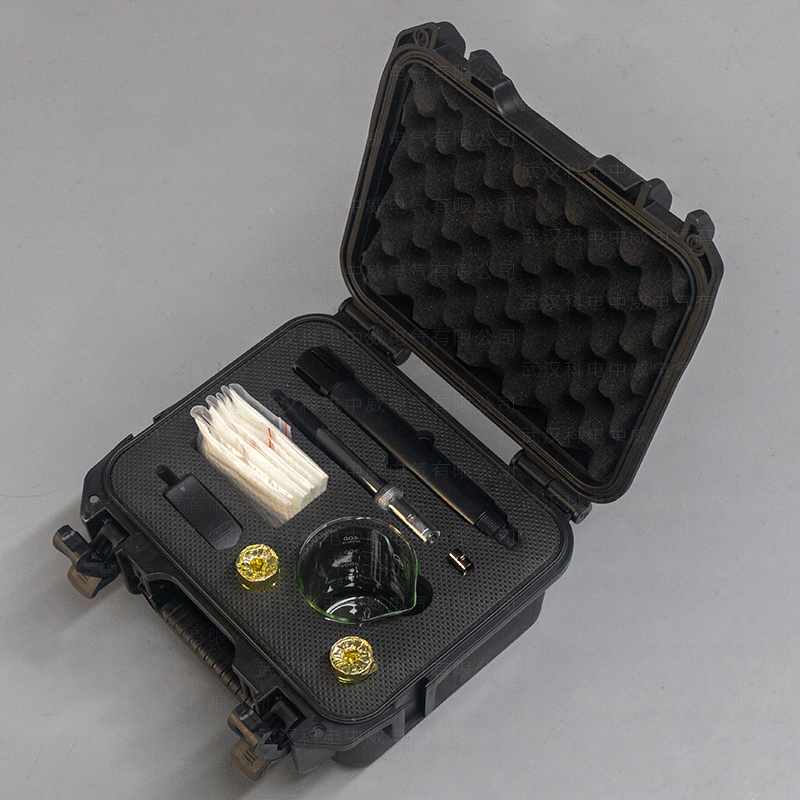

1. Built-in test containers and precision electrodes allow for integrated salt density and ash density testing, completing the test process in one go.
2. Features a touch screen operation with an intuitive and quick human-machine interface. Test parameters can be flexibly set, utilizing an embedded operating system with 64-bit floating-point computation.
3. Fully automated integrated testing device precisely measures water injection, performs multiple automatic stirring and signal collection. After the test is completed, please empty the test liquid from the container.
4. Portable design, convenient for on-site testing or laboratory use.
5. Utilizes laser frequency conversion transmission principle to directly test ash density without the need for filtration, drying, or weighing.
6. Intelligent data analysis provides multiple output modes for test results, including direct reading of test results, printing reports, and exporting test results directly to a USB drive via a USB interface.
7. The instrument comes with a built-in micro printer for directly printing test results.
