Currently, there are many methods and tools for detecting insulators, but most of them are basically qualitative detections that cannot accurately and quickly detect the insulation status of each insulator, thus failing to serve as preventive detection. The size of the insulation resistance value of high-voltage transmission line insulators is a significant issue directly related to the safe and stable operation of the lines. Once an insulator shows zero value or becomes dirty, it must be cleaned or replaced; otherwise, it could lead to flashover and tripping accidents.

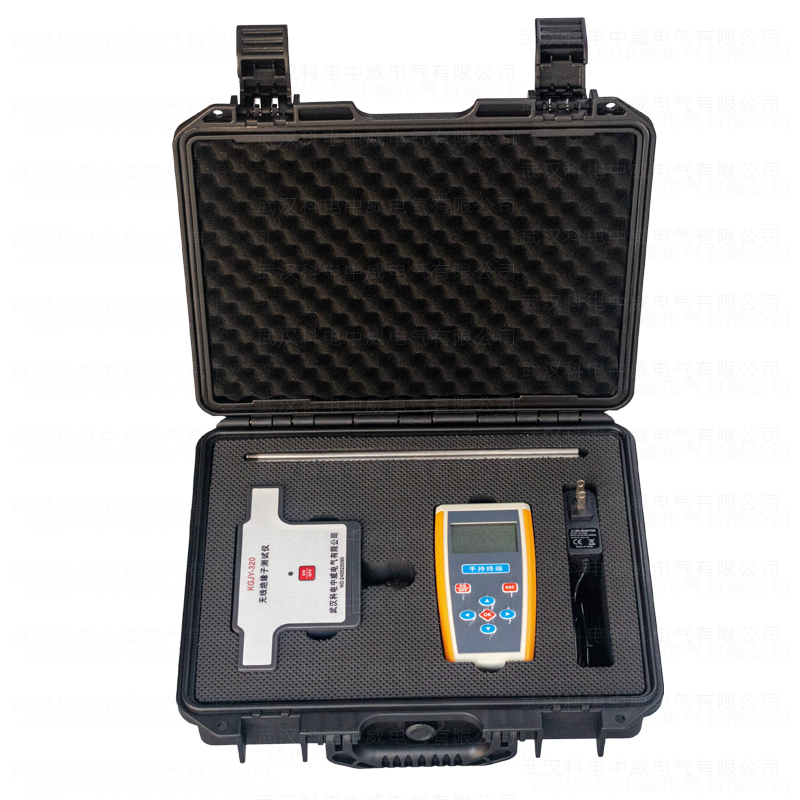

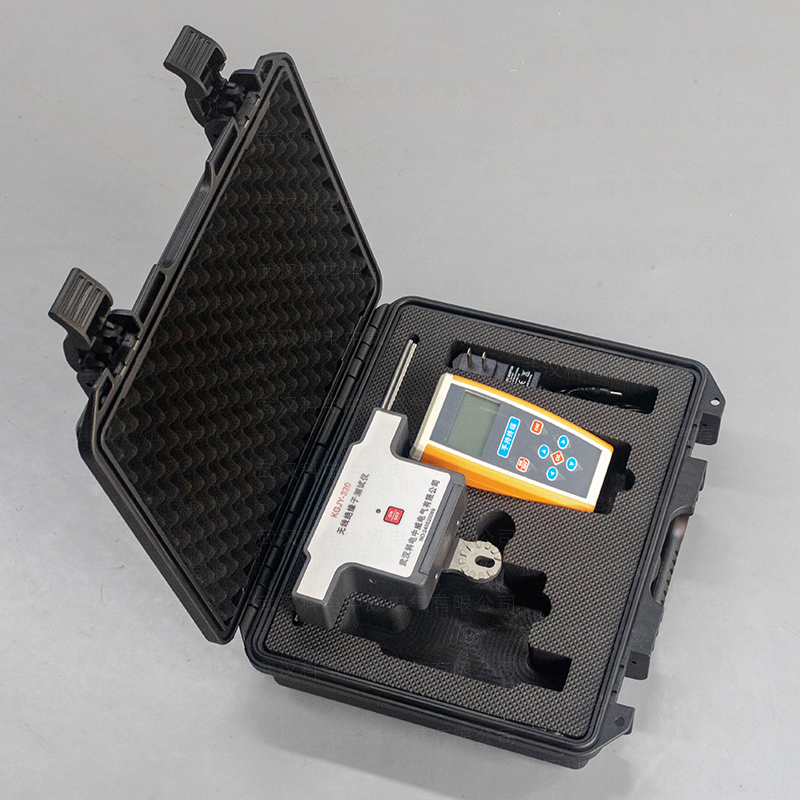

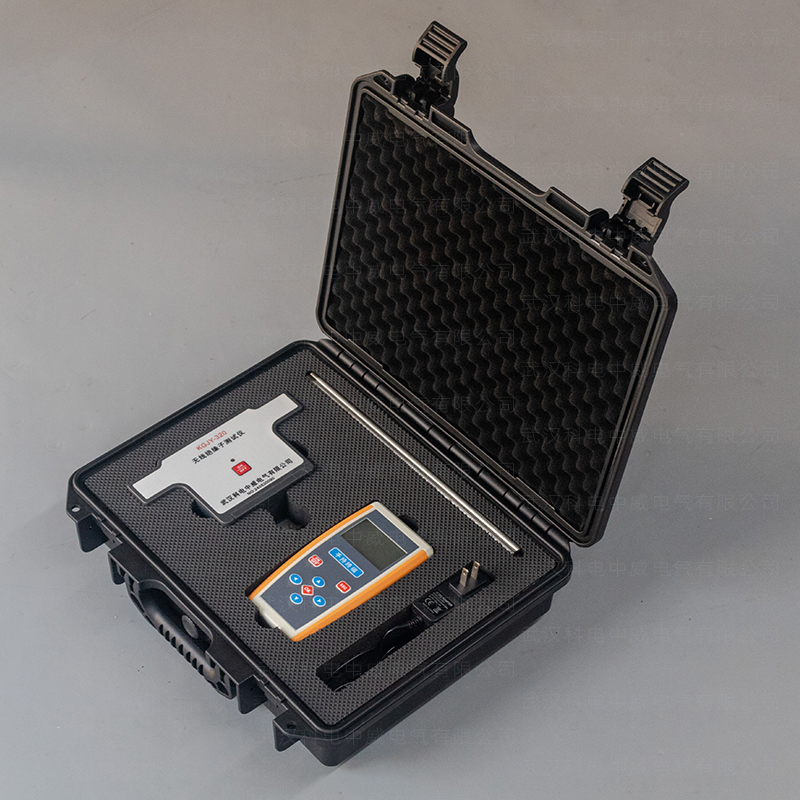

Given this, our company, in combination with the requirements proposed by a wide range of users and through extensive field trials, has successfully developed a new high-performance quantitative detection and analysis instrument - the "KGJY-320 Wireless Insulator Tester". This instrument can effectively discover internal hidden faults in insulators, improve the reliability of power grid system operations, and enhance the work efficiency of line personnel during testing. The operation method is simple and fast, mainly used for accurately measuring the resistance value of each insulator during power-off conditions. It can also accurately distinguish between insulators that have leaked electricity but have not yet been punctured and are in a critical state of damage. The measurement results are recorded, stored, and displayed in real-time in data form, and it features automatic voice alarms for low-value insulators.

This product uses wireless transmission, with communication distances between the detector and handheld terminal reaching over 100 meters, making the measurement process truly safe, reliable, fast, and accurate. Additionally, the instrument possesses strong anti-interference capabilities, fully complying with (EMC) standard requirements and suitable for various electromagnetic interference environments.

Specifications:

• Operating Voltage: 35-500KV, suitable for different voltage levels.
• Measurement Resistance Range: 10 - 3000MΩ.
• Measurement Error: ≤±10%.
• Sampling Rate: 10 times/second.
• Date and Time Setting: Adjustable date and time settings for easy browsing and viewing of historical data.
• Backlight Duration Setting: Options include always on, always off, or user-defined settings within 0-999 minutes.
• Auto Power-off Setting: Options range from never auto power-off to user-defined settings within 0-999 minutes.
• Transmission Distance between Handheld Terminal and Detector: ≤100 meters.
• Multi-mode Design: Enhanced applicability, safety, and convenience.
• Universal Joint Design: Allows flexible adjustment of measurement direction according to the suspension position of insulator strings.
• Double Shielding: Extremely strong anti-interference capabilities, fully compliant with EMC standards.
• Unique Human-Machine Interface: Simple and convenient operation.
