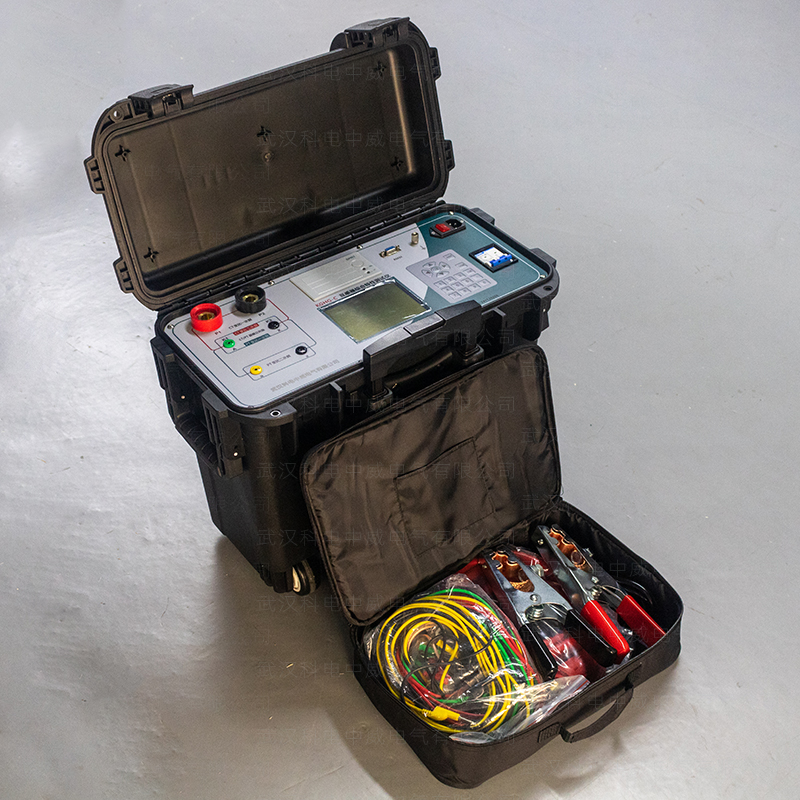

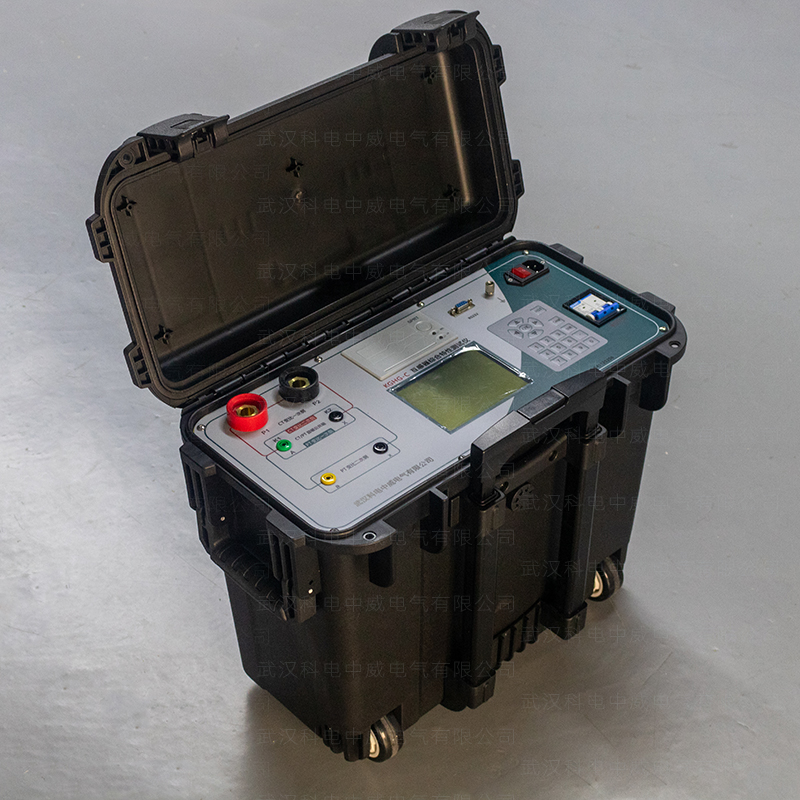

The Instrument Transformer Comprehensive Tester offers a wide range of functions, capable of not only testing excitation characteristics/voltage-ampere characteristics, ratio and polarity, 10% & 5% error curves, phase difference, and ratio difference, but also performing various other tests such as secondary load testing, AC withstand voltage testing, and current flow testing.

During excitation characteristics/voltage-ampere characteristic tests, the device can output voltages from 0 to 1000V and currents from 0 to 20A. This makes it suitable for conducting excitation characteristics/voltage-ampere characteristic tests on instrument transformers with voltage ratings below 110kV and a current rating of 1A.

Comprehensive Functions:

• Capable of testing not only excitation characteristics/voltage-ampere characteristics, ratio and polarity, 10% & 5% error curves, phase difference, and ratio difference, but also performing secondary load testing, AC withstand voltage testing, and current flow testing for instrument transformers.

User-friendly Operation:

• Simply set the maximum test voltage and current, and the device will automatically boost the voltage and draw the excitation characteristic/voltage-ampere characteristic curve. It can also automatically calculate inflection points.
• Operates on a single 220V power supply, eliminating the risks associated with using 380V power sources.

Testing Capabilities:

• During excitation characteristics/voltage-ampere characteristic tests, the device outputs voltages from 0 to 1000V and currents from 0 to 20A, suitable for conducting excitation characteristic/voltage-ampere characteristic tests on instrument transformers with voltage ratings below 110kV and a current rating of 1A.

Display and Output:

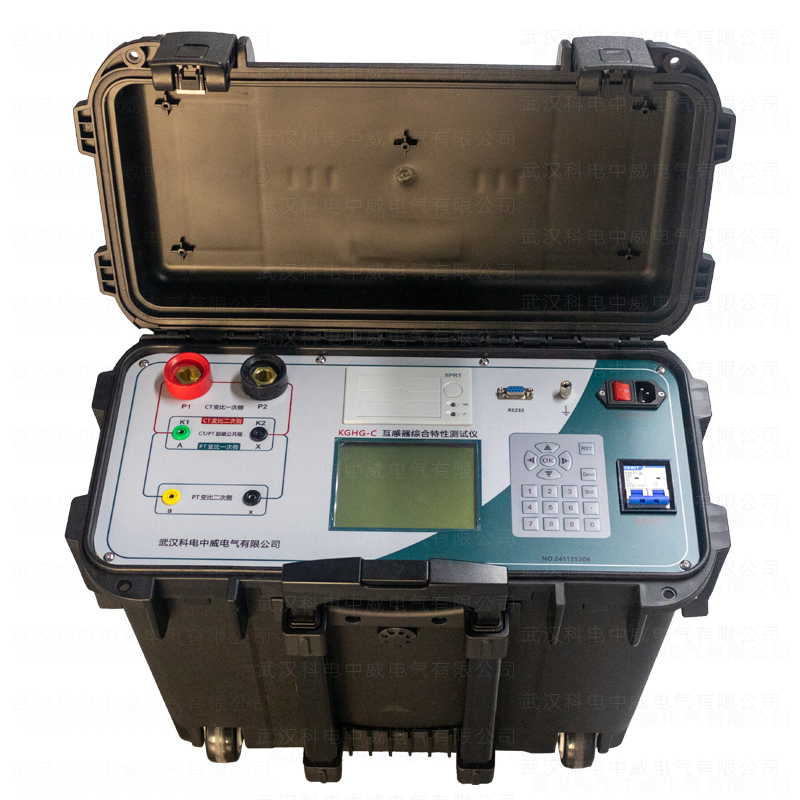

• Features a large screen LCD display, directly showing voltage-ampere curves during testing for intuitive and convenient analysis.
• Equipped with a built-in micro printer for easy printing of test data on-site.

Input and Storage:

• Utilizes a digital keypad for convenient numerical input.
• Includes a large capacity memory capable of storing up to 3000 sets of test data, which is retained even after power loss.
