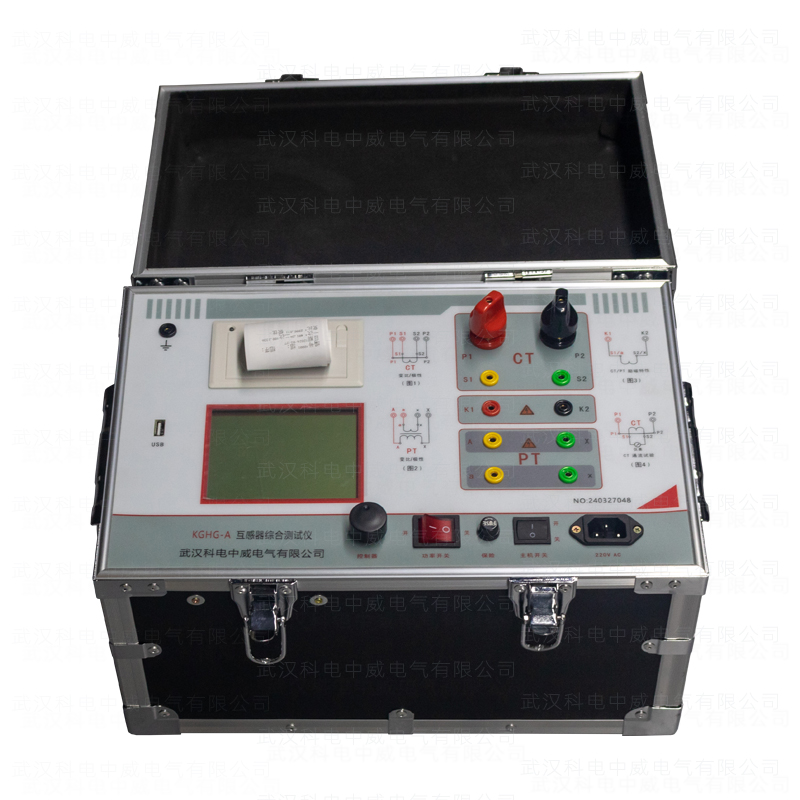

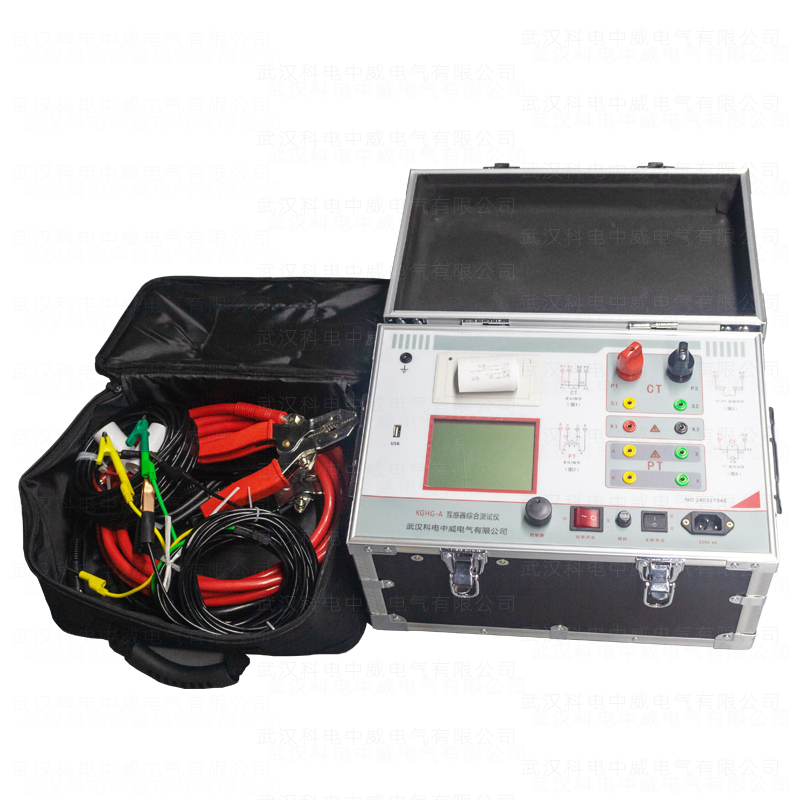

The KGHG-A Instrument Transformer Comprehensive Tester is a multi-functional field testing instrument specifically designed for testing instrument transformers, including伏安特性(voltage-ampere characteristics), 变比(ratio), 极性(polarity), 误差曲线(error curves), 计算拐点(calculation of inflection points), and 二次侧回路检查(secondary circuit inspection). During experiments, simply set the test voltage and current values, and the device will automatically boost voltage/current, quickly displaying the voltage-ampere characteristic curve or ratio, polarity, and other experimental results of the instrument transformer. It supports data saving and on-site printing, eliminating the cumbersome tasks of manual voltage adjustment, recording, and curve plotting. Furthermore, test data can be uploaded to a computer via a USB interface for further editing, saving, or printing. The operation is simple and convenient, significantly improving work efficiency. This makes it a high-cost-performance, high-tech product.

1. Supports Testing of CT and PT: Capable of detecting both Current Transformers (CT) and Potential Transformers (PT).

2. Complies with GB1207, GB1208, and Other Standards: Meets the requirements of relevant national standards.

3. No Need for External Auxiliary Equipment: All testing projects can be completed by a single device without requiring additional external equipment.

4. Built-in Micro Fast Printer: Can directly print test results on-site.

5. Adopts Intelligent Controller: Simple operation through an intelligent control system.

6. Large Screen LCD with Graphical Interface: Provides a graphical interface for easier understanding and operation.

7. Automatically Provides CT/PT (Excitation) Inflection Point Values: According to regulations, automatically calculates and provides inflection point values for CT/PT excitation characteristics.

8. Automatically Provides 5% and 10% Error Curves: Automatically generates error curves at 5% and 10%.

9. Can Save 3000 Sets of Test Data: Retains all test data even after power loss.

10. Supports USB Data Transfer: Test data can be transferred to a USB drive and read by standard PCs for further analysis and report generation.

11. Compact and Lightweight (≤22Kg): Designed for portability and ease of use in field testing.

1. Power Supply: AC 220V±10%, 50Hz

2. Device Output: 0～1000V (20A peak)

3. High Current Output: 0～600A

4. Excitation Measurement Accuracy: ≤0.5% (0.2% of reading + 0.3% of range)

5. CT Range: ≤5000A/1A (25000A/5A)

6. Ratio Measurement Accuracy for CT: ≤0.5%

7. PT Range: 1kV～500kV

8. Ratio Measurement Accuracy for PT: ≤0.5%

9. Operating Environment: Temperature: -10℃ ～ 40℃, Humidity: ≤90%

10. Altitude: ≤1000m

11. Dimensions: 400mm × 250mm × 250mm

12. Weight: ≤20Kg
