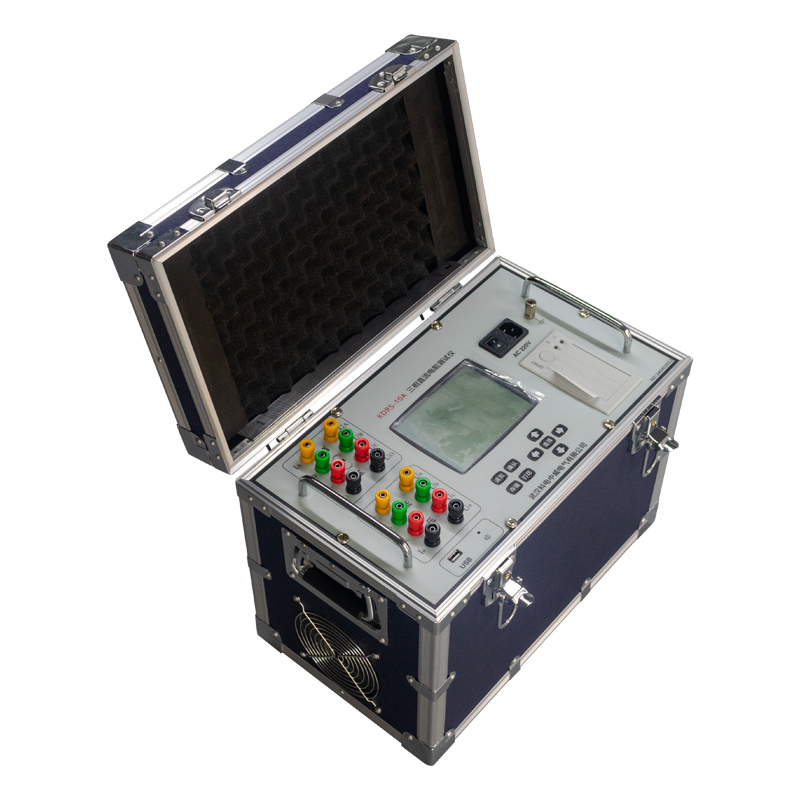

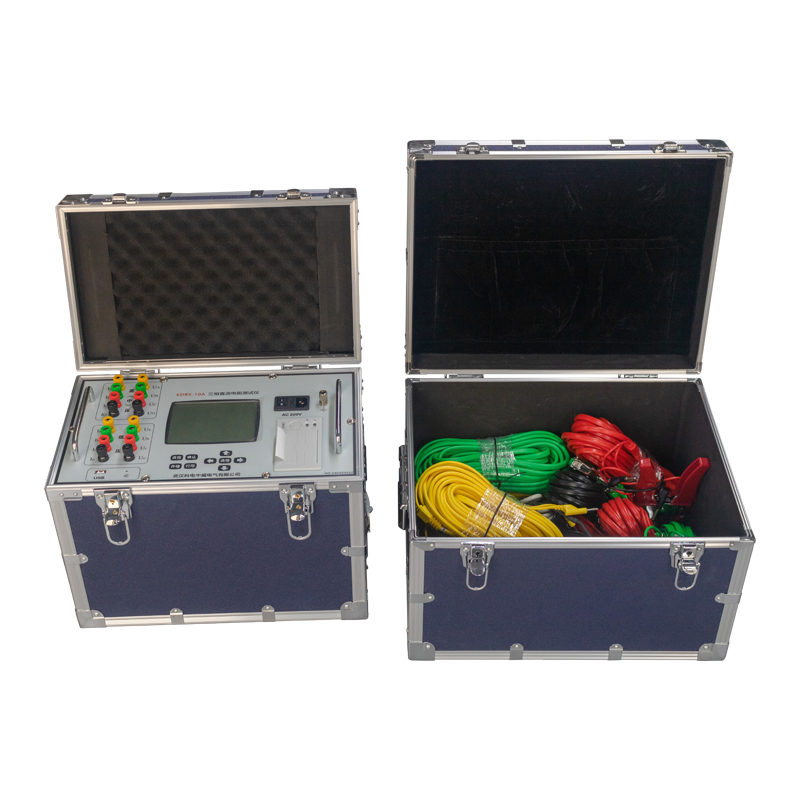

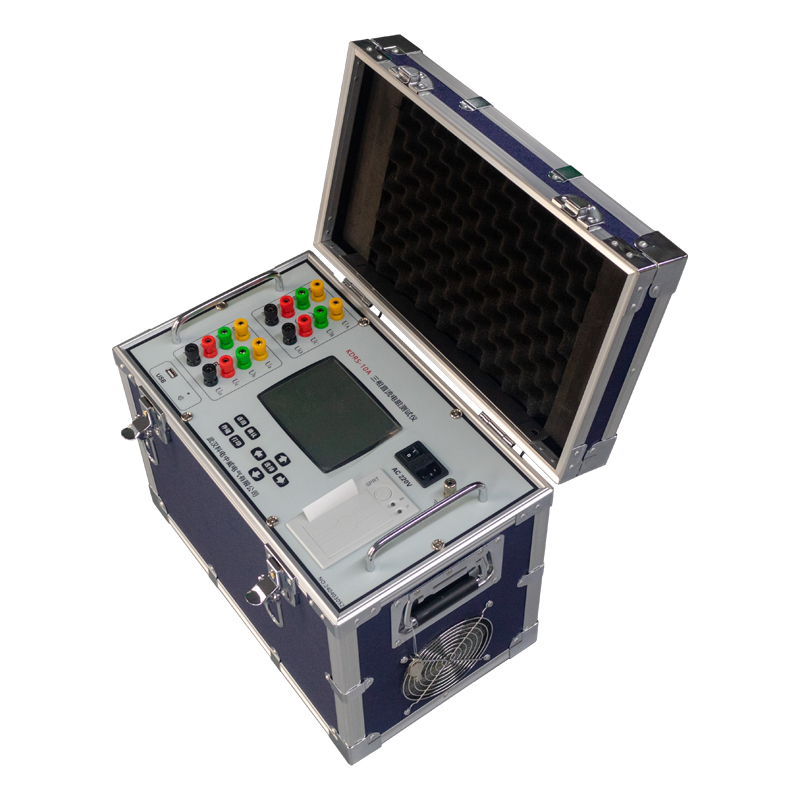

KDRS-10A Three-channel Transformer DC Resistance Tester is the latest generation product for measuring transformer DC resistance, optimized for measuring three-phase winding DC resistance of large capacity transformers. It enables simultaneous testing of the three-phase windings of transformers. For on-load tap-changing transformers, it can adjust the tap switch directly without discharging, reducing the measurement time to one-third of traditional single-phase measurements, significantly shortening work time and labor intensity. The DC resistance meter features a large screen LCD display with a full Chinese graphical interface, clear and intuitive, with very simple operation. It is also equipped with a panel-type printer and a large-capacity non-volatile memory, making it convenient to store and print measurement results. The test data is stable, fast, and has good repeatability, making it an excellent choice for on-site transformer DC resistance measurement.

1. The three-phase DC resistance tester can simultaneously test the YN three-phase winding DC resistance of transformers, significantly reducing measurement time.

2. It can quickly and accurately complete the measurement of transformer winding DC resistance.

3. It has comprehensive protection functions.

4. It is compact and portable.

5. It features a full Chinese menu on the LCD, making operation simple and intuitive.

6. It offers fast testing speed, high accuracy, good data repeatability, and strong anti-interference capability.

• 1. Output Current: For three-phase testing: 2*5A, 2*2.5A, 2*1A.
• 2. For single-phase testing: 10A, 5A, 1A.
• 3. Testing Range:
  • 2*5A: 1mΩ～1Ω
  • 2*2.5A: 2mΩ～2Ω
  • 2*1A: 5mΩ～5Ω
  • 10A: 500μΩ～2Ω
  • 5A: 1mΩ～4Ω
  • 1A: 5mΩ～20Ω
• 4. Resolution: 0.1μΩ.
• 5. Measurement Accuracy: ±(0.2% reading + 2 digits).
• 6. Dimensions: 420mm×250mm×340mm.
• 7. Instrument Weight: 15kg.
