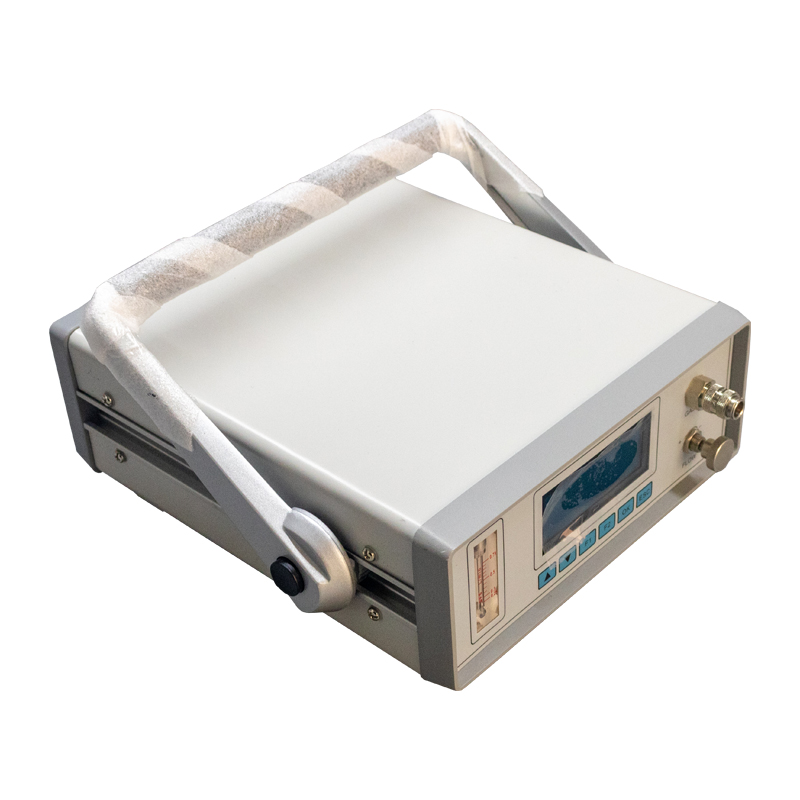

KDCD-A SF6 Purity Analyzer provides a simple method for on-site SF6 purity testing. During use, it is connected to the chamber of a pressurized device filled with SF6 gas. The SF6 gas flows through an electrochemical sensor at a certain rate, and the instrument directly measures the purity of the SF6 gas.

Main applications of the SF6 Purity Analyzer include: SF6 purity testing, routine inspection, partial discharge monitoring, gas purification/filtering monitoring, and fault high-voltage contact checks.

The product names and variations include:

- SF6 Purity Analyzer

- Portable SF6 Gas Purity Analyzer

- SF6 Gas Purity Analyzer

- SF6 Purity Meter

- Gas Purity Analyzer

- Sulfur Hexafluoride Purity Analyzer

- Sulfur Hexafluoride Purity Meter

- Portable Sulfur Hexafluoride Purity Analyzer

- Sulfur Hexafluoride Gas Purity Tester

- SF6 Purity Tester

- SF6 Gas Purity Tester

Portable Design: The instrument is lighter, making it convenient to carry and use.

Rapid Measurement: After turning on the instrument, it can immediately start measuring without waiting, quickly obtaining the purity value.

Gas-saving: During measurement, it consumes only about 0.5L (at 101.2kPa) of gas.

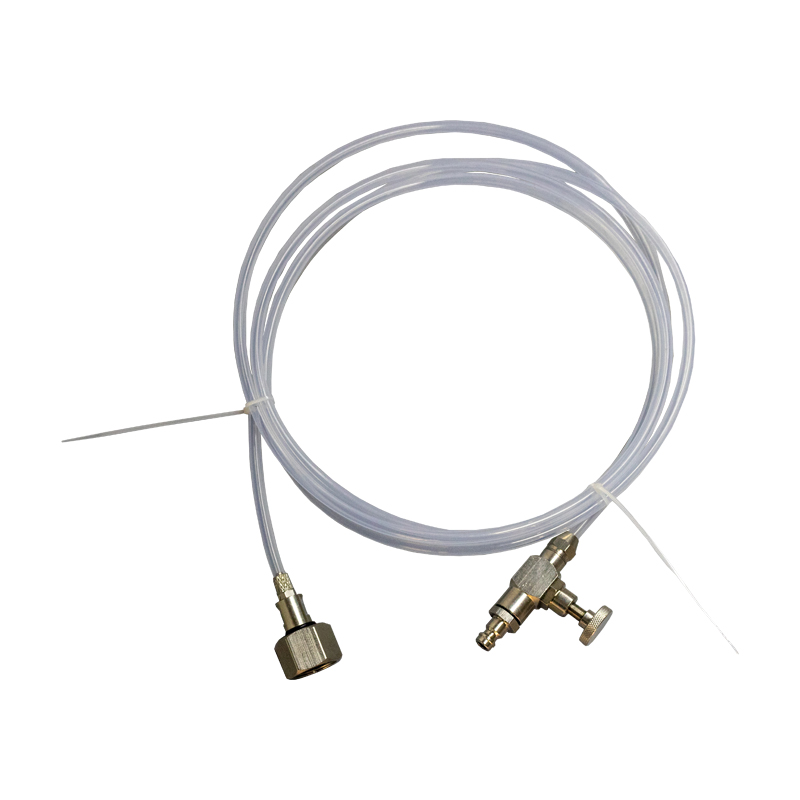

Self-locking Connector: Uses German original imported self-locking connectors, ensuring safety and reliability with no gas leakage.

Data Storage: Features a large capacity design, capable of storing up to 100 sets of test data.

Clear Display: The LCD screen directly shows the purity value, time and date, battery level, etc.

RS232 Interface: Can be connected to a serial printer for data printing (optional).

Built-in Power Supply: Equipped with a 4Ah rechargeable lithium battery, allowing for continuous operation for up to 10 hours on a full charge.

Purity:

- Measurement Range: 0%~100%

- Measurement Accuracy: ±0.5%

- Measurement Time: <2 minutes

Ambient Temperature: -40℃ to +60℃

Ambient Humidity: 0～100% RH

Power Supply: AC 220V, built-in rechargeable battery

Battery Performance: Charging time over 20 hours, can be used for 10 hours

Weight: 3 kg

Dimensions: 250×100×300 mm³

Operating Temperature: -30℃ to +50℃
