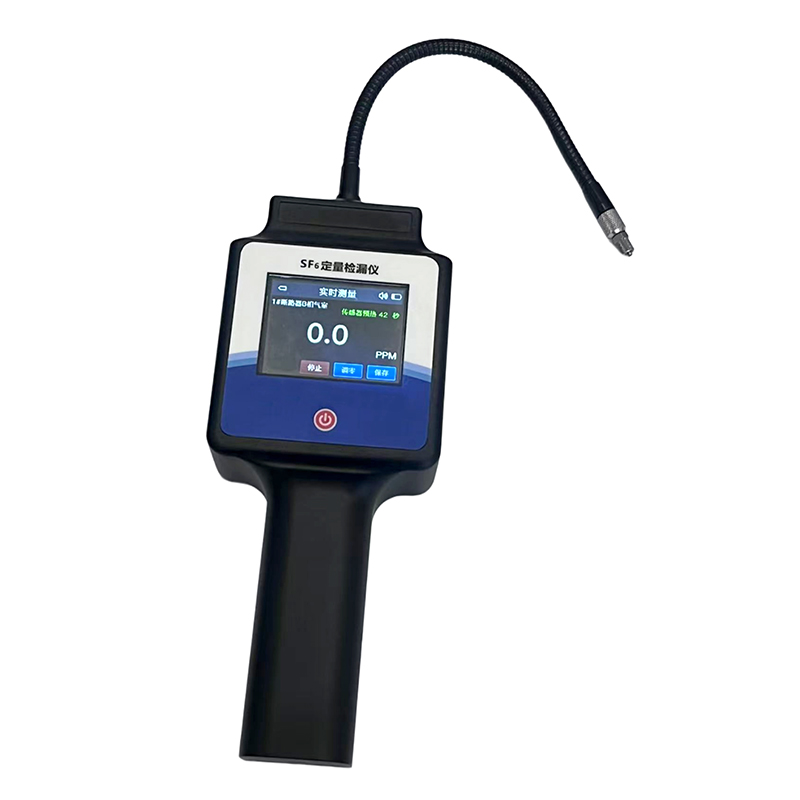

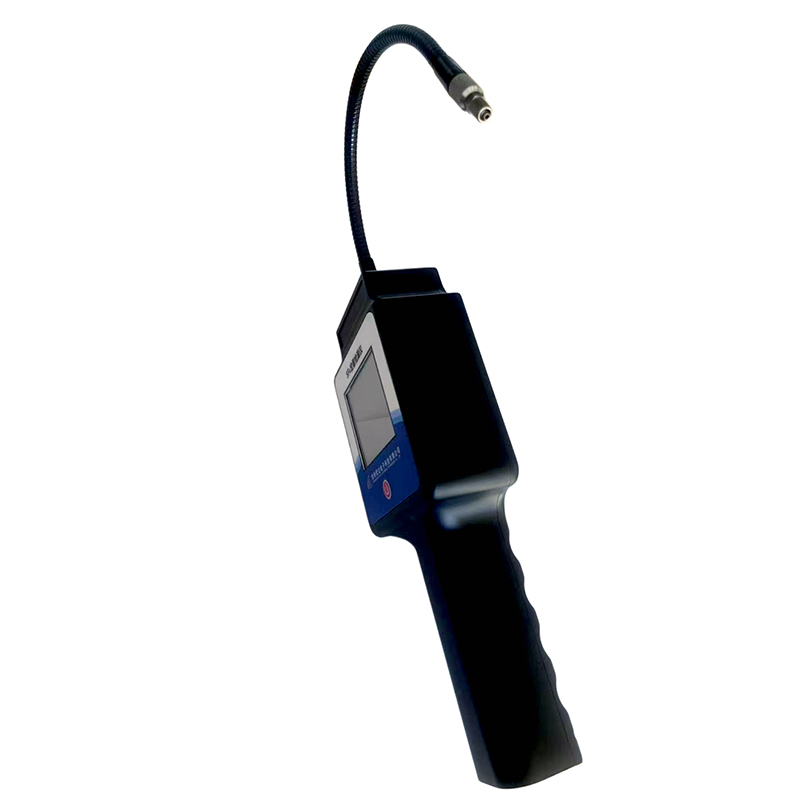

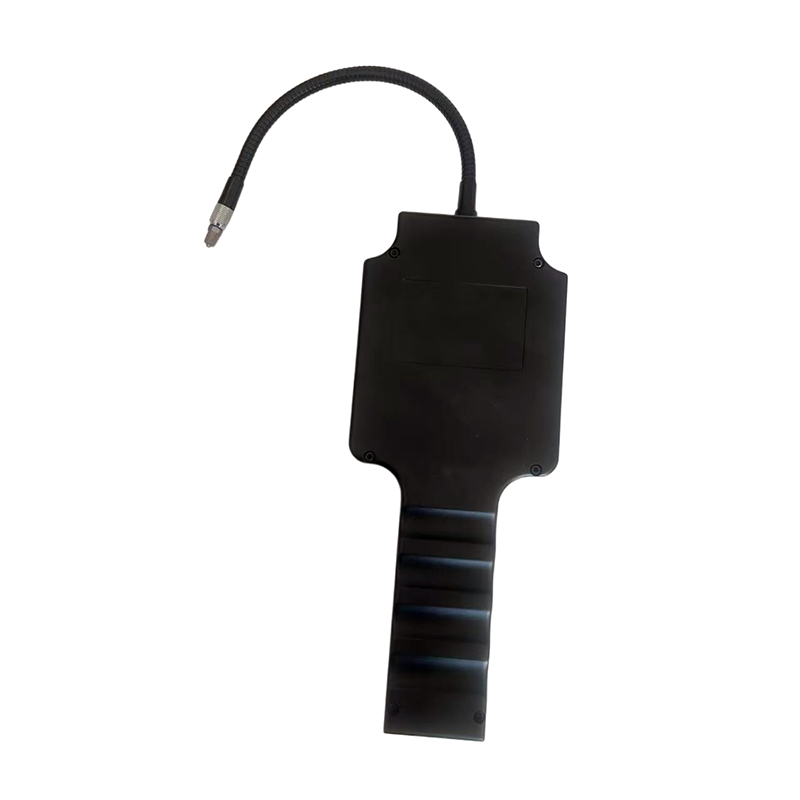

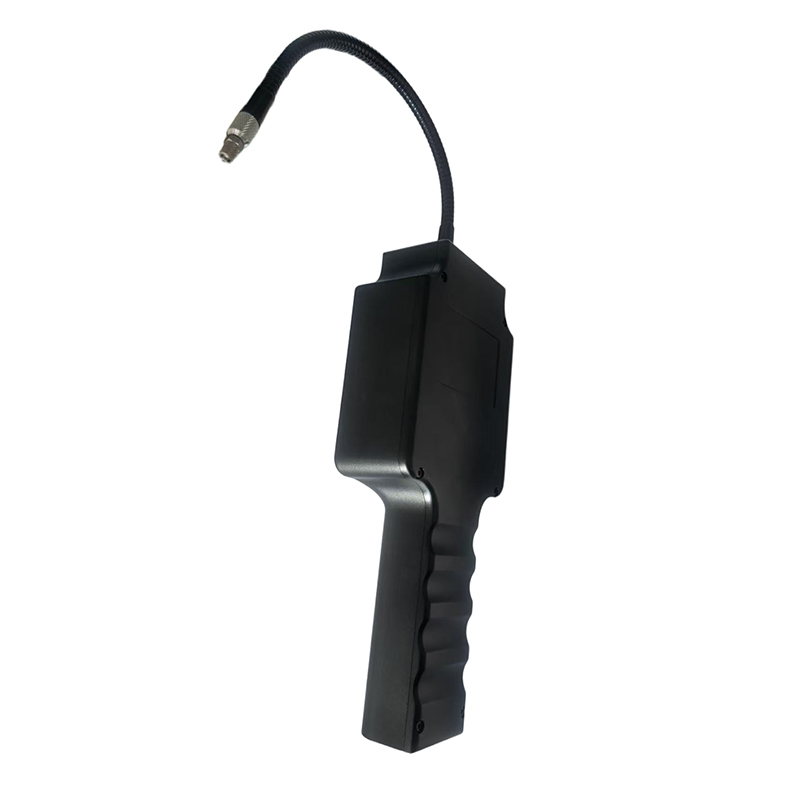

SF6 Quantitative Leak Detector is an efficient detection device specifically designed for the rapid and precise detection of sulfur hexafluoride (SF6) gas leaks. This instrument combines advanced sensing technology with intelligent operation functions, making it suitable for use in power systems, industrial manufacturing, environmental monitoring, and other fields. It helps users promptly identify gas leak risks, ensuring safe equipment operation, reducing maintenance costs, and supporting green environmental goals.

Main Applications: GIS combined electrical apparatus, SF6 circuit breakers, switchgear, and related power and environmental protection equipment.

• High Sensitivity Detection
• Fast Response and Alarm
• Handheld Portable Design
• Built-in Data Management System
• Strong Anti-interference Performance
• Low Maintenance Cost

• Measurement Principle: Dual-wavelength non-dispersive infrared spectrometer (NDIR)
• Measurement Range: 0～1000 μl/l
• Resolution: 0.1 μl/l
• Operating Pressure: ≤1.0 MPa
• Sampling Method: Diaphragm pump automatic sampling
• Display: High-definition touchscreen LCD, graphical operation, real-time display of leak values, units, and alarm status
• Power Supply: Lithium battery (runtime ≥8 hours)/Type-C charging
• Operating Environment: Temperature: -30℃ to +50℃, Humidity: ≤90% RH (no condensation)
• Data Software: Can directly generate test reports
• Weight: 0.8 kg
