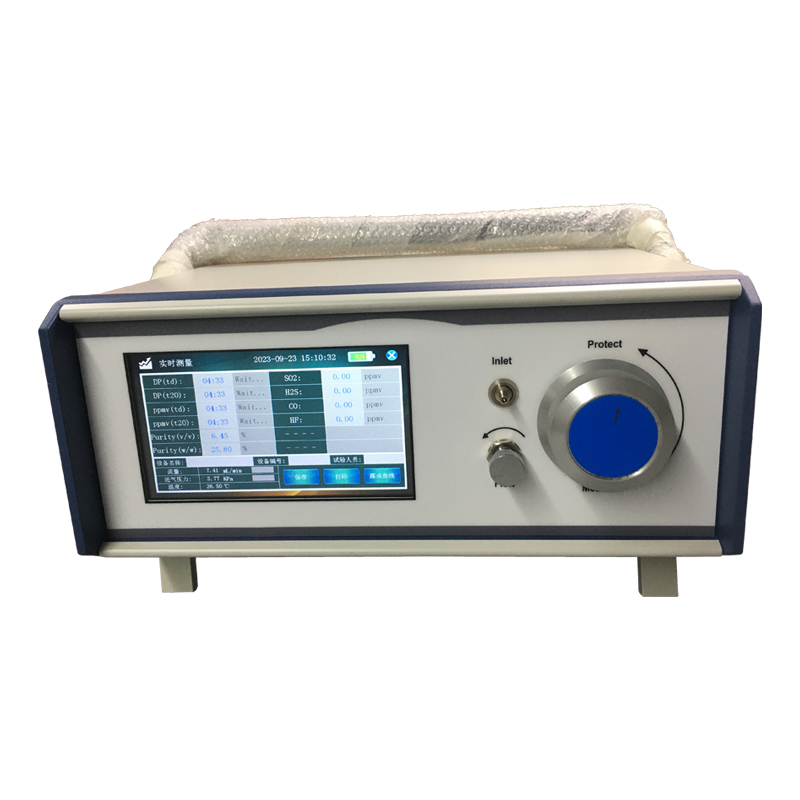

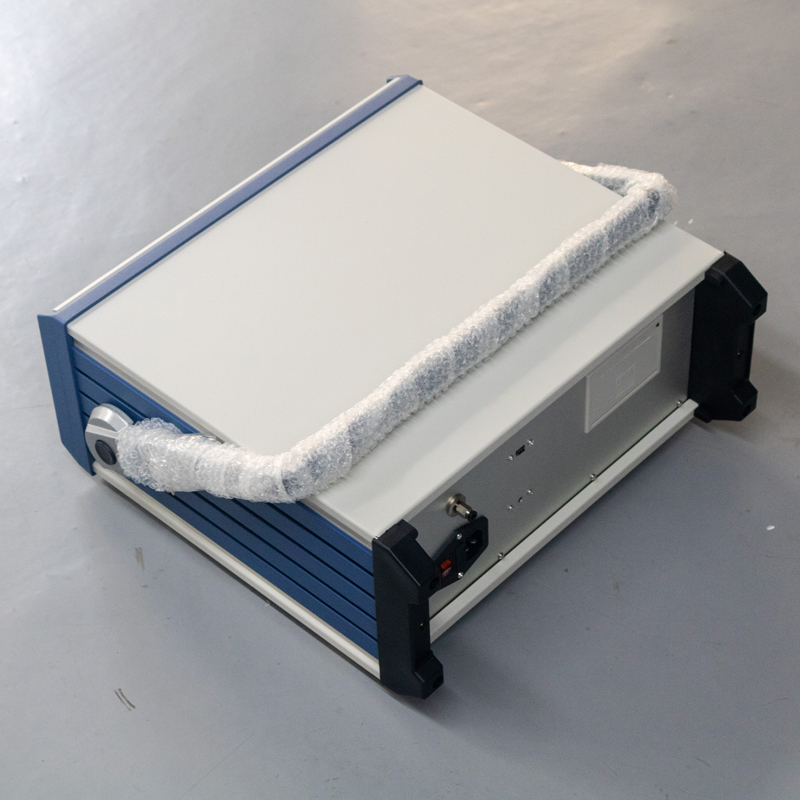

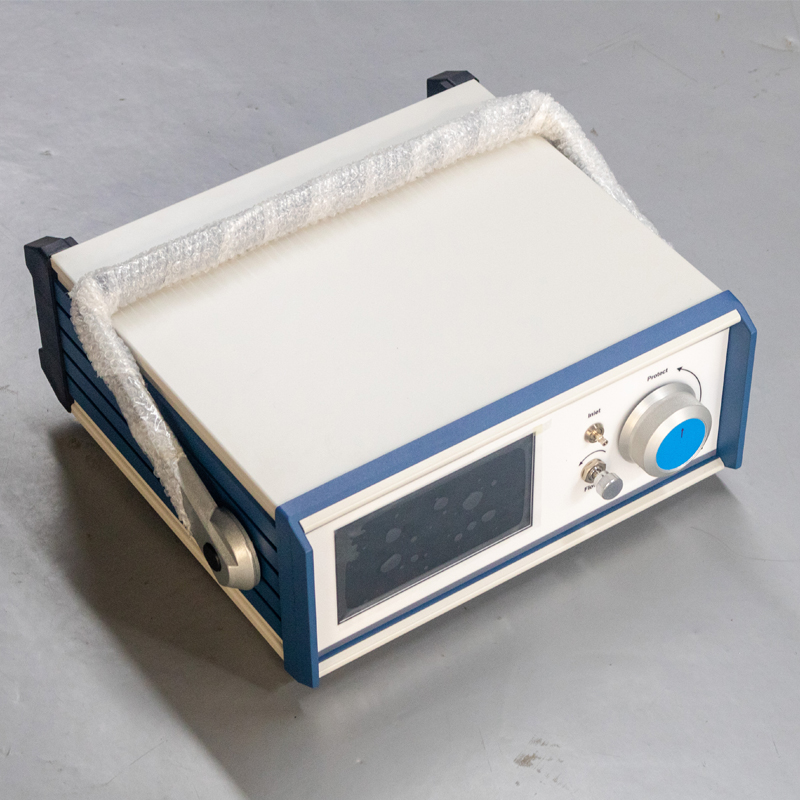

KDZH-D SF6 Comprehensive Tester

Applications:

SF6 Comprehensive Tester integrates SF6 dew point testing, SF6 purity testing, and SF6 decomposition product testing into one device, combining the functions that previously required three separate instruments into a single unit. With one on-site measurement, it can complete tests for all three indicators, significantly saving gas usage in the equipment. It also reduces the workload for users and greatly improves work efficiency.

Response within
24 hours
Free warranty
12 month
On-line training
Support

Profile
Features
Parameter

Profile:

Features:

Long-life detection components
Integrated multiple measurement methods to meet different measurement requirements
Large LCD display with Chinese and English menus for easy operation
Users can perform on-site calibration to ensure reliable use in the field
Touchscreen operation, simple and easy to use
Various data displayed simultaneously
Large-capacity data storage

Parameter:

① Dew Point: Range: -80℃ to +20℃; Accuracy: ≤±1.0℃

② SF6 Decomposition Products:
- H2S Range: 0～100μL/L; Accuracy: ±0.3μL/L when measurement value ≤10μL/L; ±3% when measurement value >10μL/L
- SO2 Range: 0～100μL/L, 0～2000μL/L; Accuracy: ±0.3μL/L when measurement value ≤10μL/L; ±3% when measurement value >10μL/L
- HF Range: 0～10μL/L; Accuracy: ±0.3μL/L when measurement value ≤10μL/L; ±3% when measurement value >10μL/L
- CO Range: 0～500μL/L; Accuracy: ±2.0μL/L when measurement value ≤50μL/L; ±4% when measurement value >50μL/L
- N2 Range: 0～100%; Accuracy: ±0.5%
- O2 Range: 0～1%; Accuracy: ±0.05%

③ SF6 Purity: Range: 0~100%; Accuracy: ±0.5%
CF4 Concentration: Range: 0～80%; Accuracy: ±0.5%
