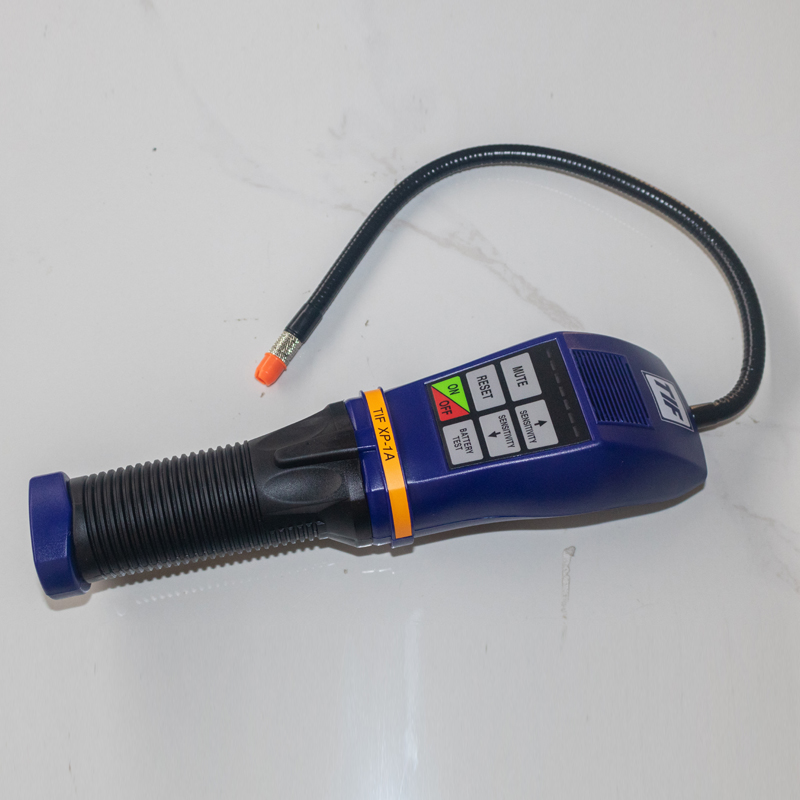

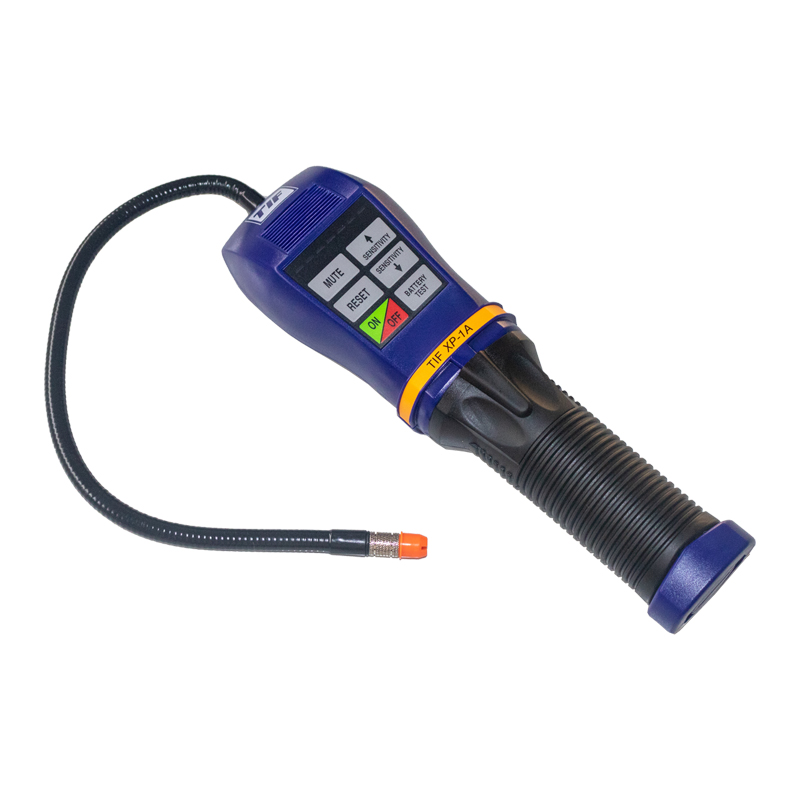

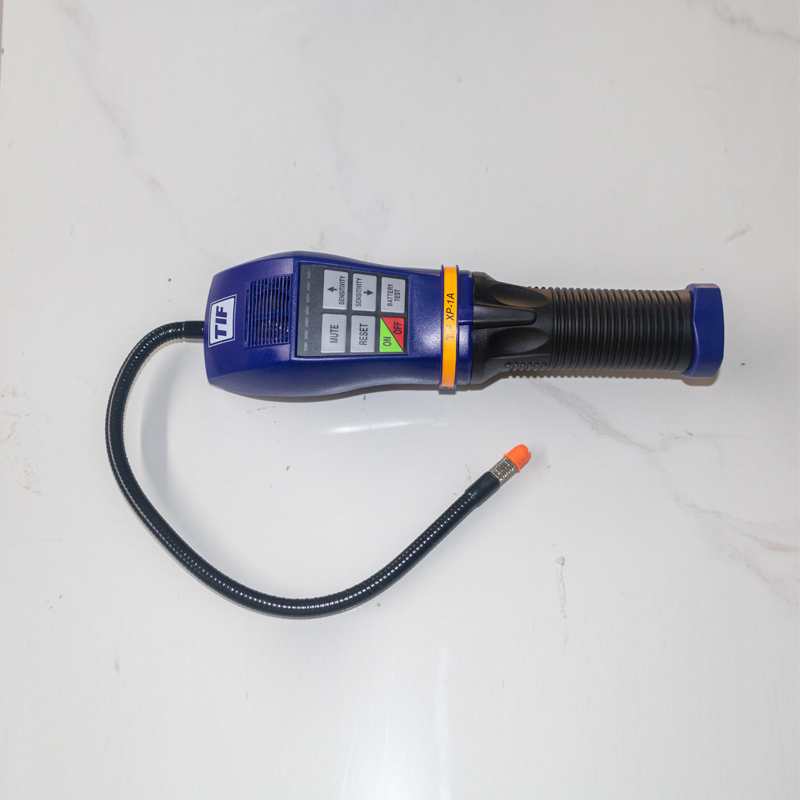

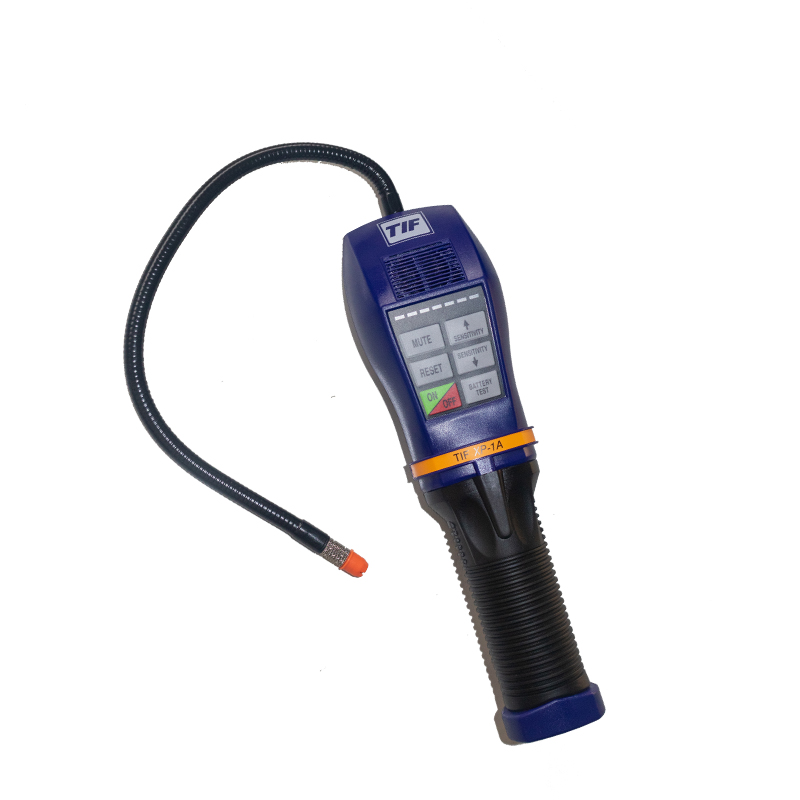

XP-1A SF6 Gas Qualitative Leak Detector

Applications:

Response within
24 hours
Free warranty
12 month
On-line training
Support

Profile
Features
Parameter

Profile:

XP-1A SF6 gas qualitative leak detector is an advanced microprocessor. The digital signal processing technology it adopts makes it possible to perform better than the control circuits and sensor signals used. Additionally, the number of components used in the circuit is reduced by about 40%, thereby improving reliability and performance. The microprocessor monitors the sensor head and battery voltage values in real time, up to 4000 times per second, compensating for even the slightest signal fluctuations in a timely manner. This makes the instrument a stable and reliable detection tool in almost all environmental applications.

The XP-1A SF6 gas qualitative leak detector has added many user-friendly features in its design. Seven levels of sensitivity can be freely set, increasing the sensitivity from level one to level seven by 64 times; a unique three-color LED indicates progressive and wide-ranging leakage sizes; it shows the sensitivity level and provides actual voltage indication for battery power. A touch keypad controls all functions; a novel housing design allows users to grip it firmly for easy operation; and there are visual intuitive indicators for installation and use.

Features:

Unique sensitivity adjustment
Innovative tracking of leak points
Battery level display
Simple operation, easy to carry
Fully intelligent
Resistant to pollution and interference
Good repeatability
Fast response time
High sensitivity and stability, controlled by a microprocessor with advanced digital signal processing
1Three-color visual display
1Includes noise suppression features
1Seven levels of sensitivity, providing up to 64 times the sensitivity range
1Cordless and portable, operated by two C batteries
1Touch keypad control
1Includes carrying case
1Real-time sensitivity adjustment

Parameter:

Power Supply	3V DC, two C-size alkaline batteries
Highest Sensitivity	According to SAE J1627 criteria: guaranteed value for R12, R22, and R134a is 14 grams/year
Ultimate Sensitivity	For SF6 and all halogen-based refrigerants <3 grams/year
Operating Temperature	0-52℃
Battery Life	Approximately 30 hours under normal use
Duty Cycle	Continuous, unlimited
Response Time	Instantaneous
Reset Time	1 second
Warm-up Time	About 2 seconds
Device Weight	560 grams
Device Dimensions	22.9cm×6.5cm×6.5cm
Probe Length	35.5cm
